Restore initial image system

1. Format the SSD​

Before restoring the factory image, you need to format the SSD into exFAT format.

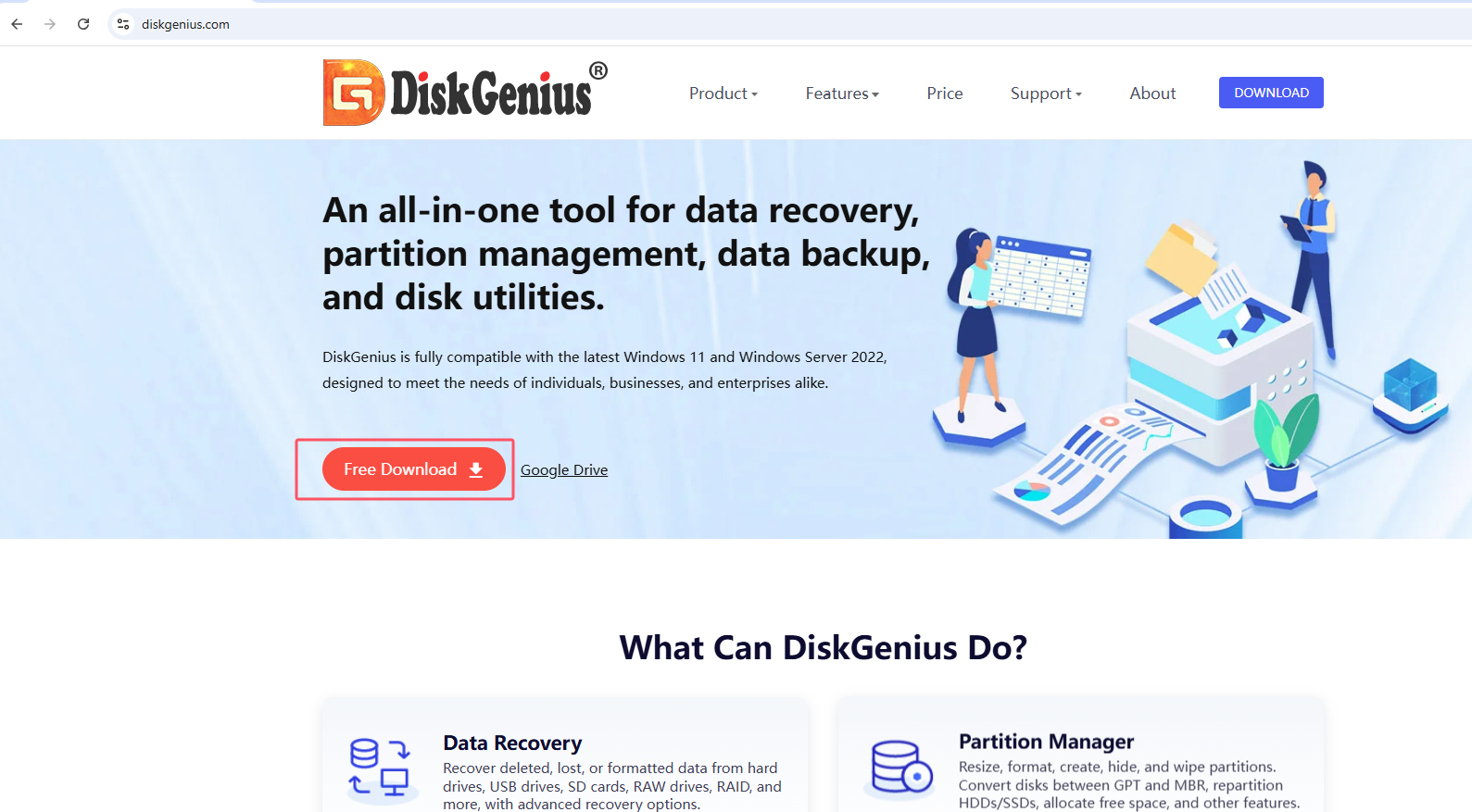

1.1. Download DiskGenius​

Download URL:https://www.diskgenius.com/

image-20250110201003552

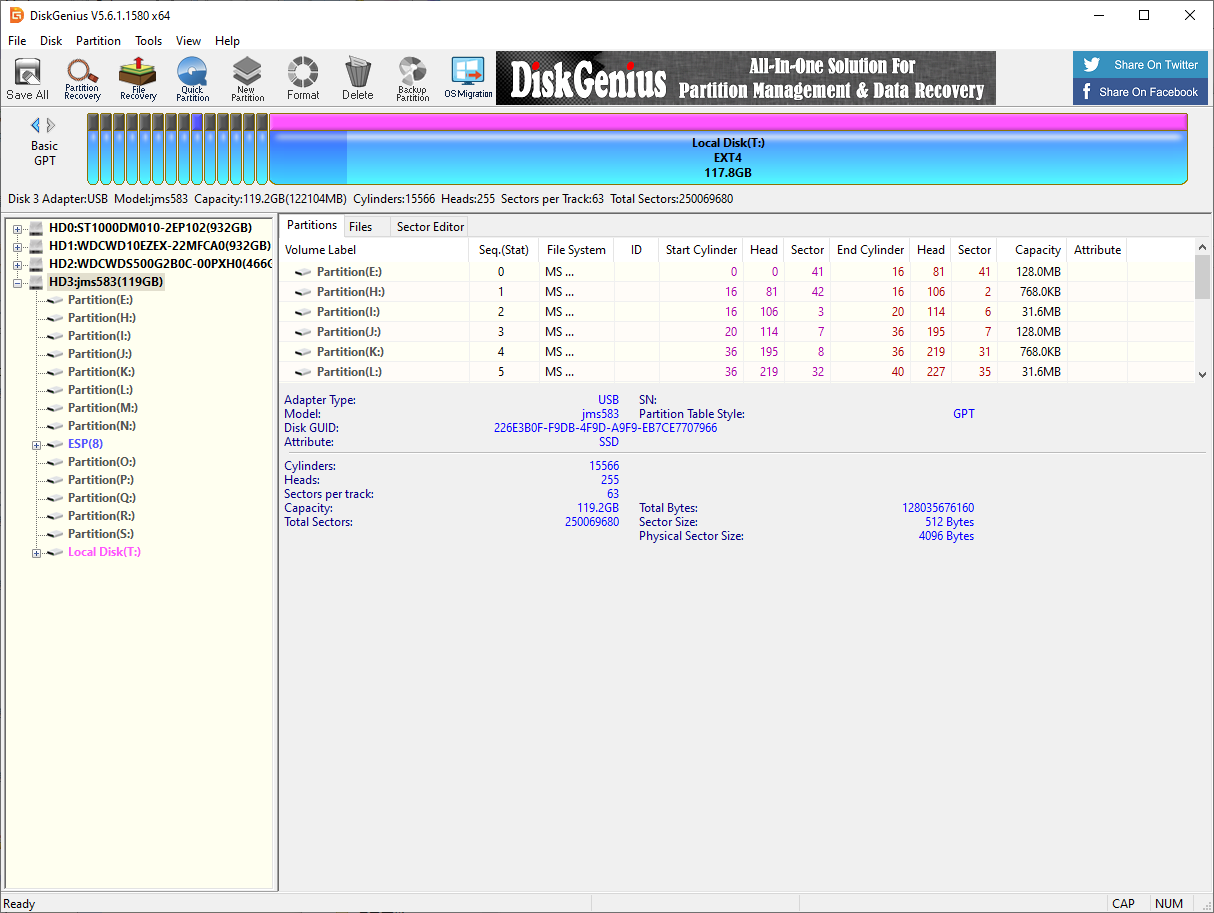

Double-click the exe file you just downloaded to install DiskGenius. Follow the prompts to install the software on the Windows computer. After opening the software, it will be as shown below.

image-20250123103324948

1.1. Use DiskGenius​

1.1.1, Delete partition​

Deleting a partition will clear the disk data. Please confirm whether the drive letter is the disk that needs to be formatted before confirming the operation: you can judge based on the disk size and the newly added drive letter of the connected disk

image-20250123103430264

image-20250123103526303

image-20250123103555176

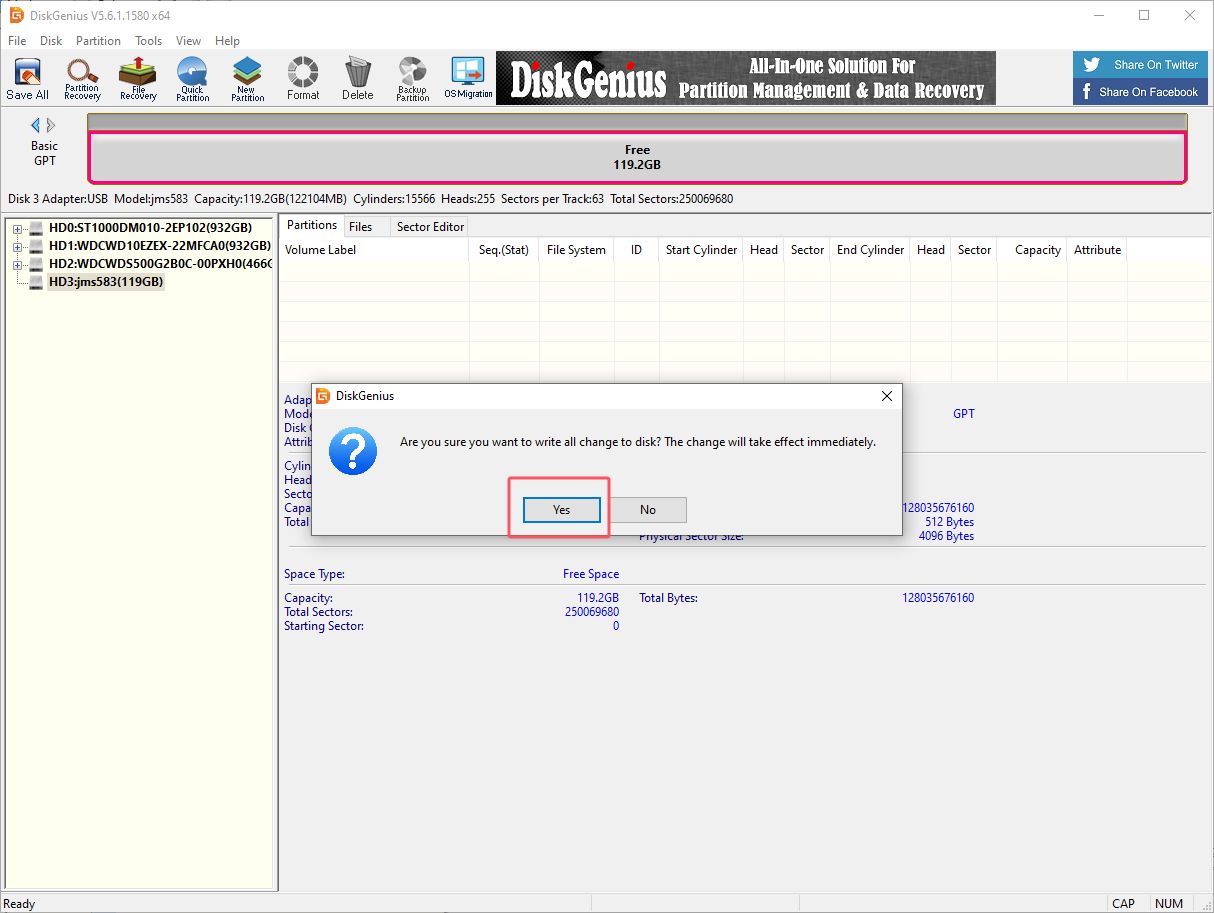

image-20250123103612549

1.1.2. Create a new partition​

Partition the SSD into NTFS format.

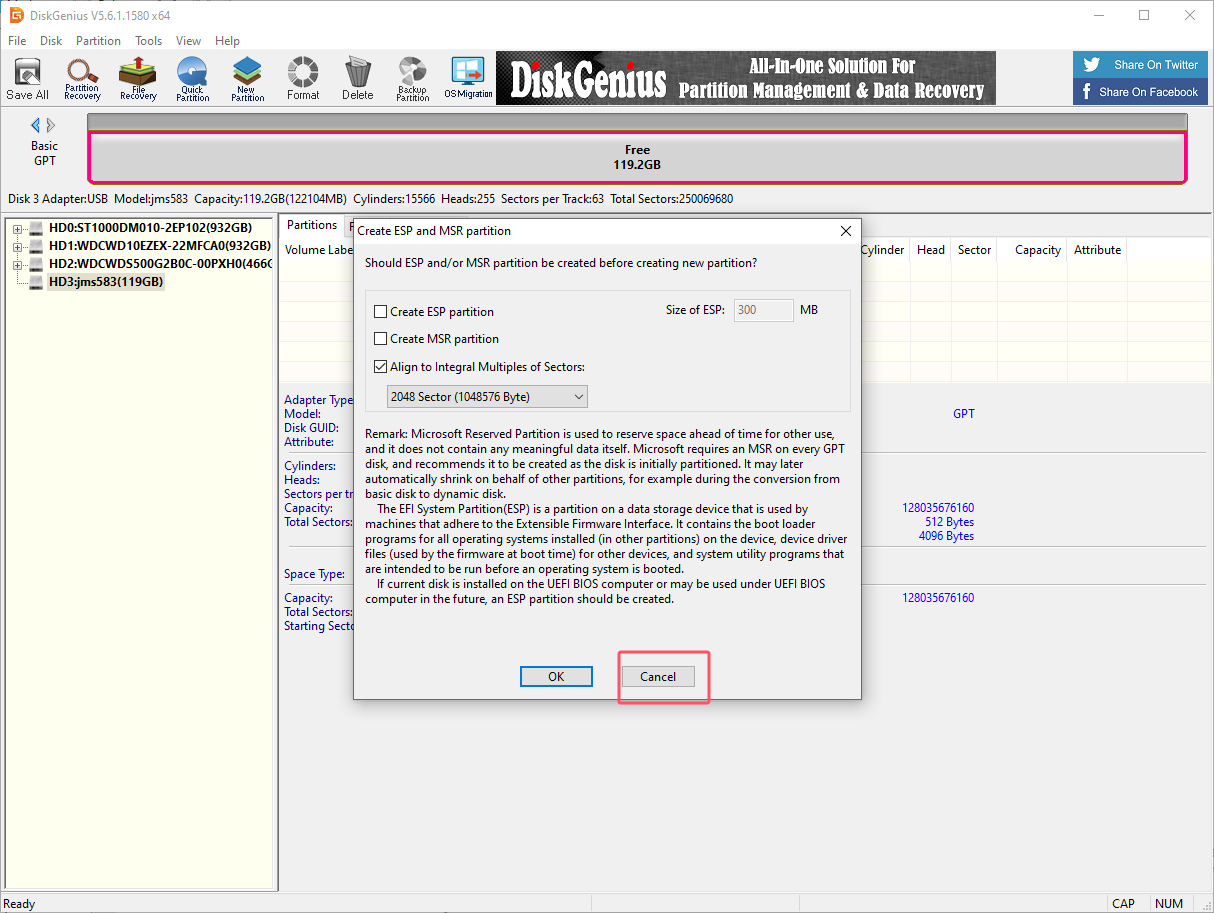

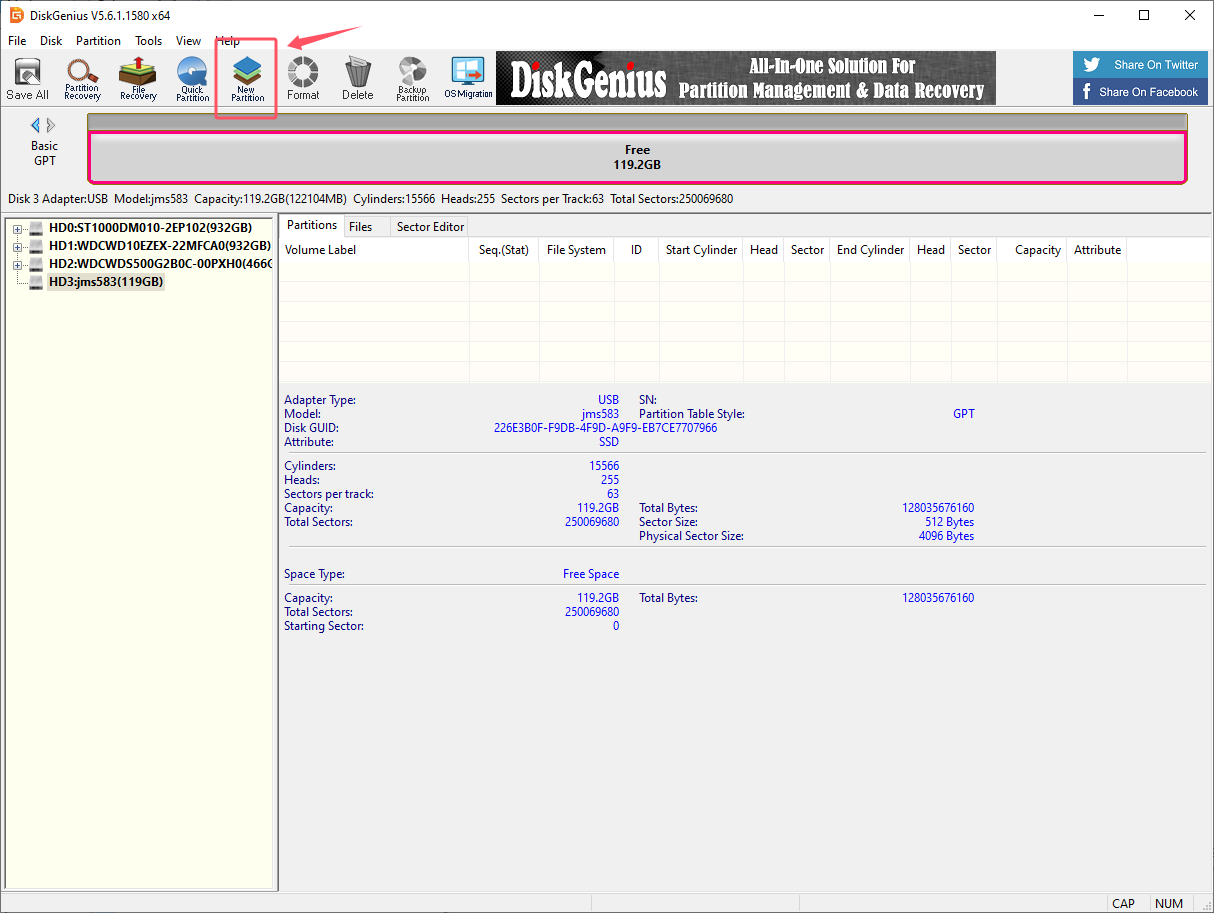

Select the drive letter corresponding to the SSD, and then click New Partition:

image-20250123103732426

image-20250123103803273

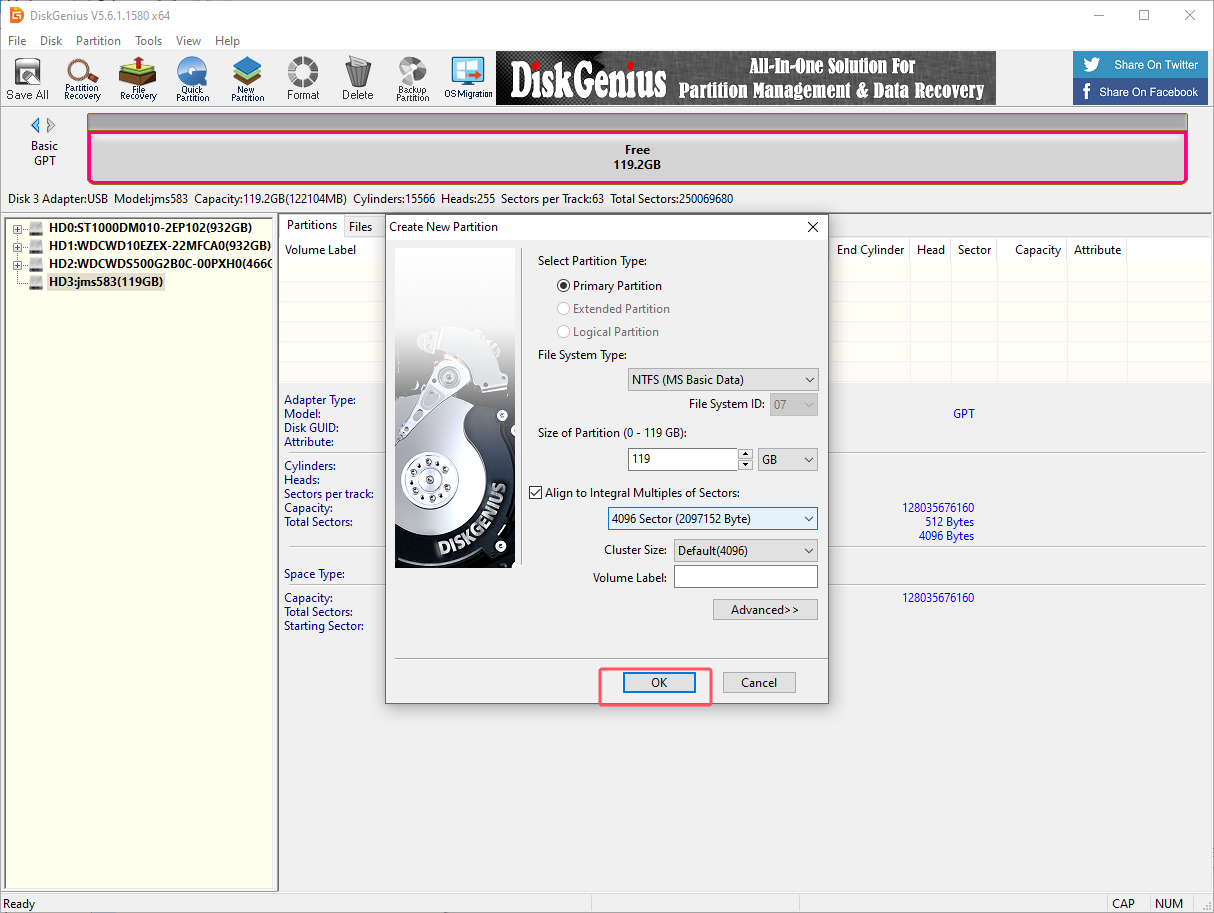

image-20250123103855896

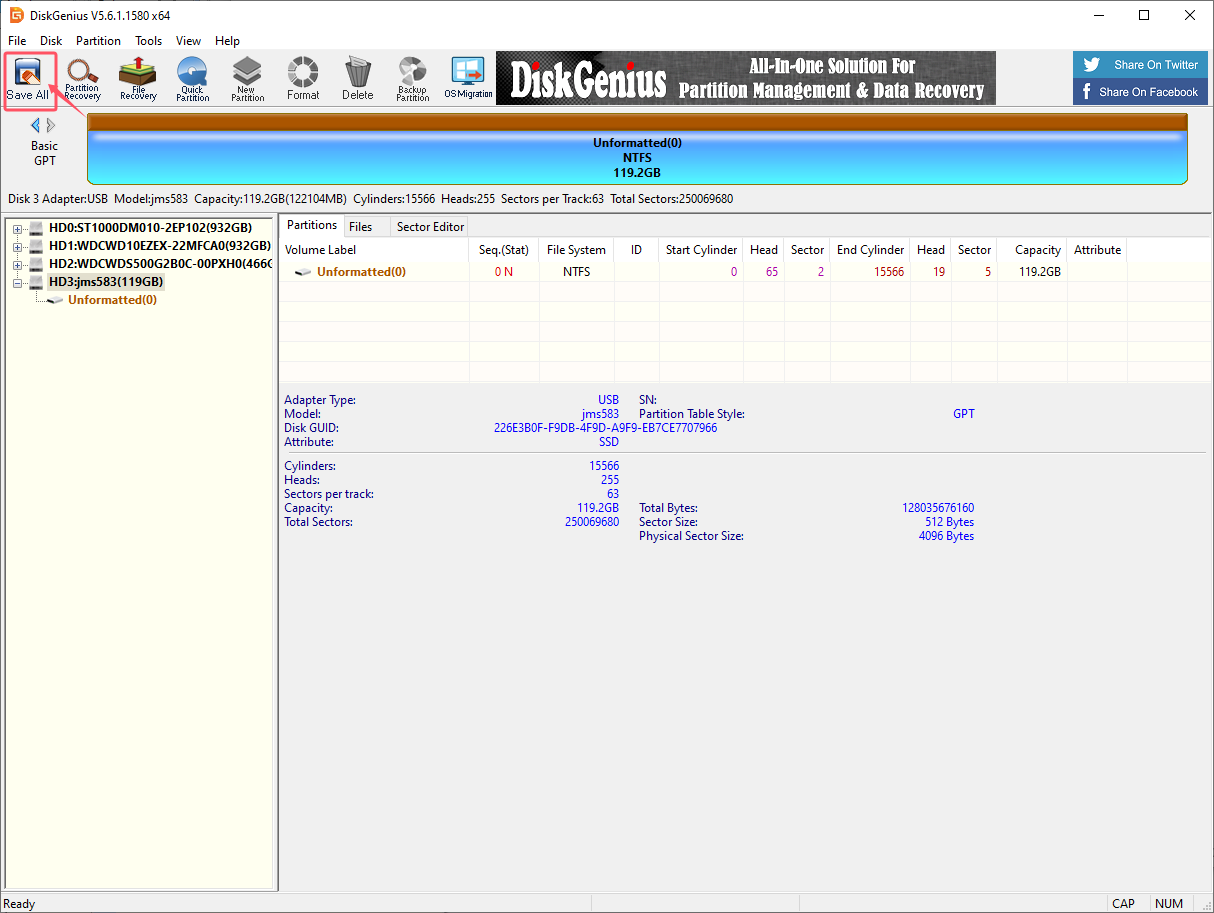

image-202501231039252 21

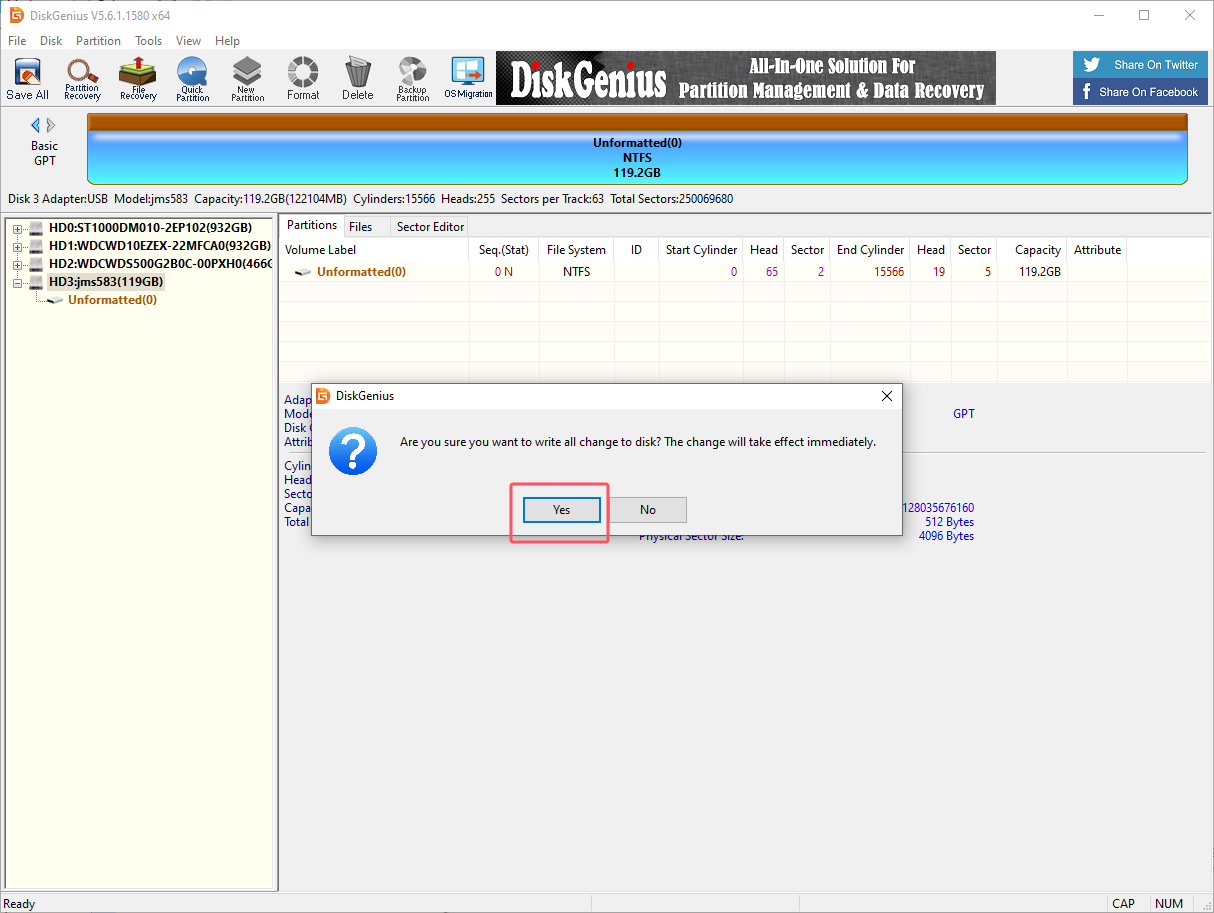

image-20250123103937125

image-20250123103950870

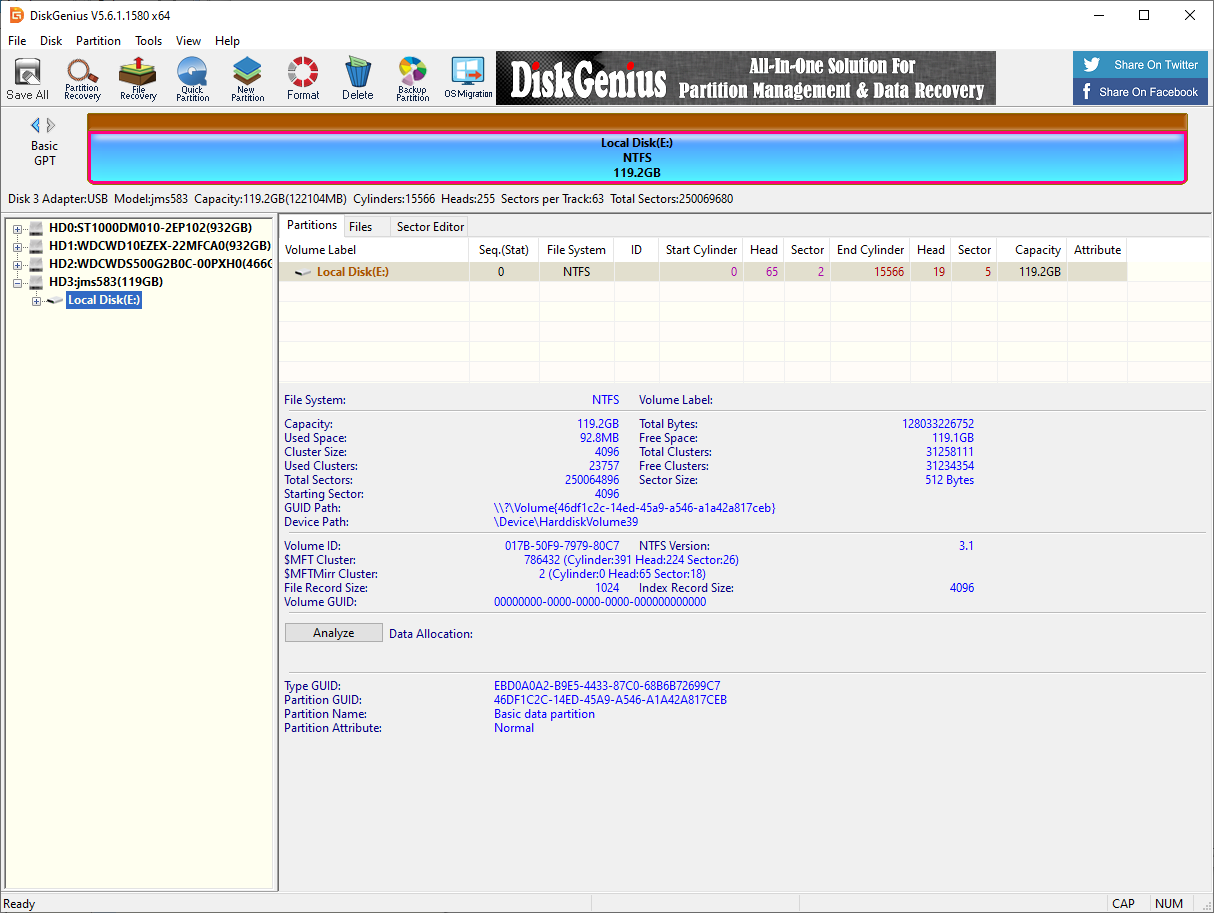

image-20250123104017947

2. Restore the factory image​

You need to download and decompress the factory image system in the data to the local computer in advance.

2.1. Install Win32DiskImager​

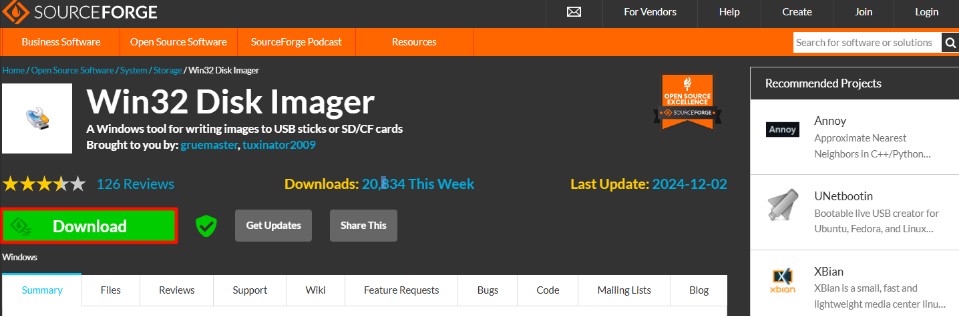

Download URL:https://sourceforge.net/projects/win32diskimager/

image-20250110222239328

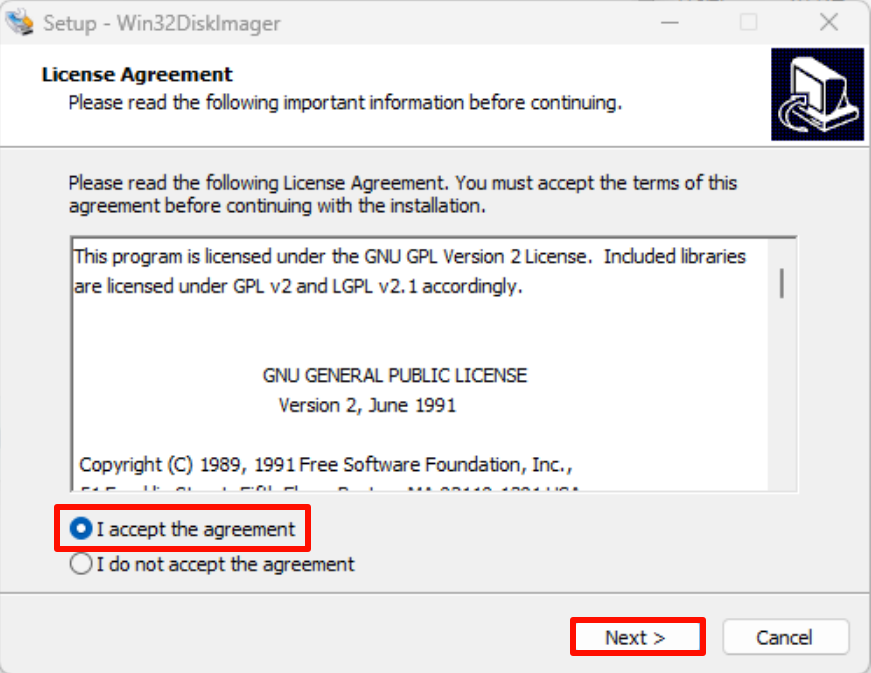

Open thewin32diskimager-1.0.0-install.exeinstallation package as an administrator and accept the agreement:

image-20250110222209318

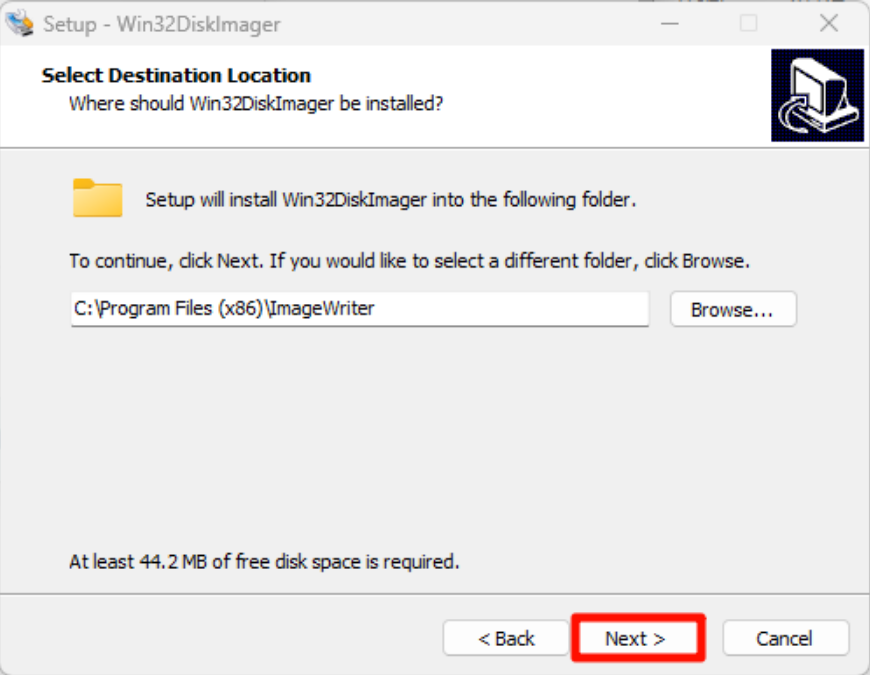

Installation location: The default location is recommended

image-2025011022214163 9

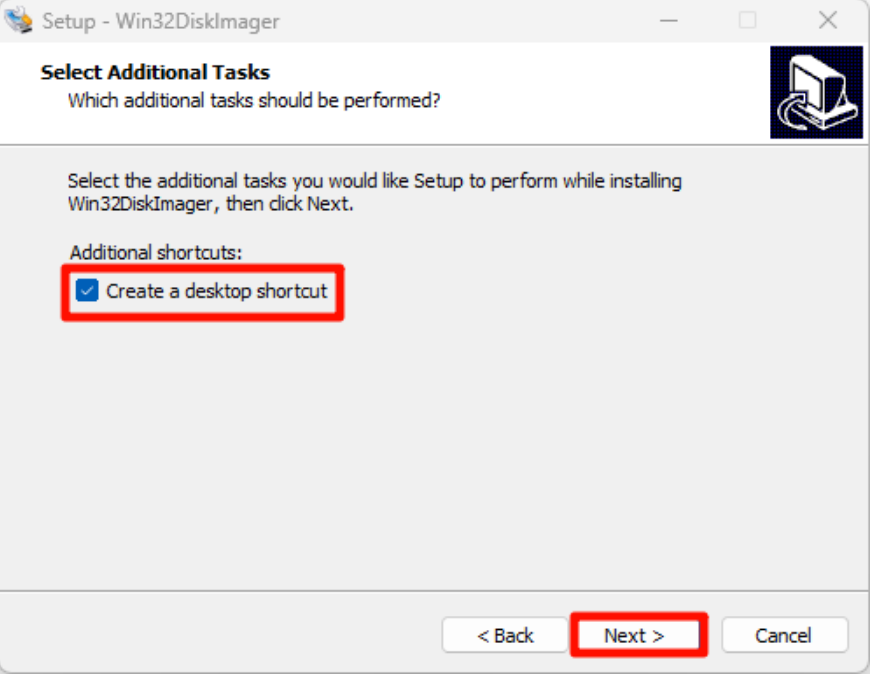

Installation options:

image-20250110222109847

image-20250110222041855

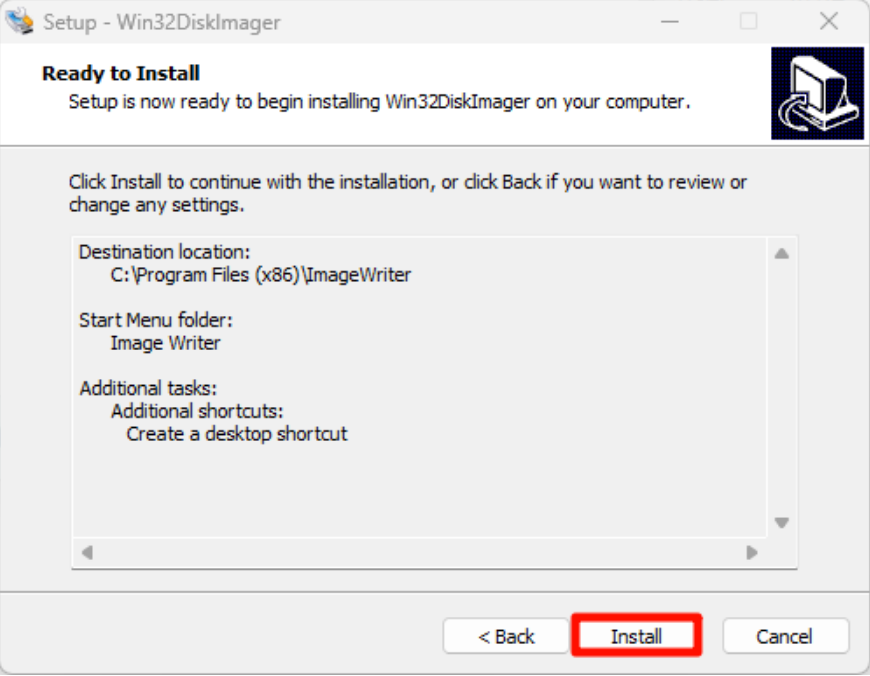

Start installation:

image-20250110222017810

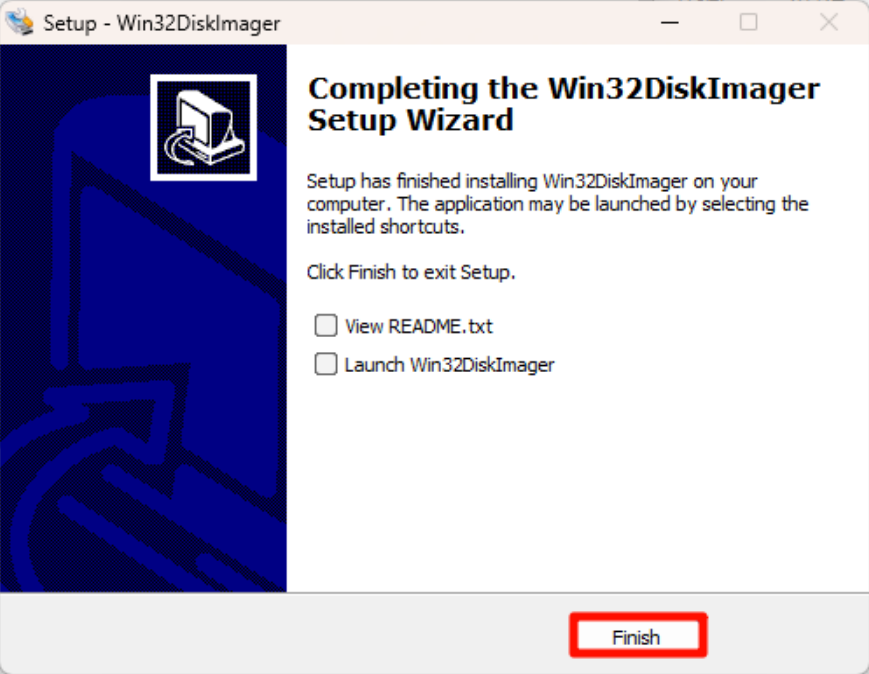

Complete installation:

image-20250110221950093

2.2. Use Win32DiskImager​

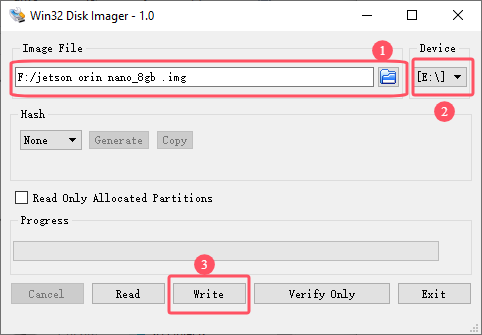

①: Select the factory image file (*.img) in the data

②: Select the drive letter corresponding to the solid-state drive

③: Write the factory image to the solid-state drive

image-20250123105549673

Confirm writing to the system:

![image-20250123105608261](/img/docs/jetson/02-Basics/2-5/image-2 0250123105608261.png)

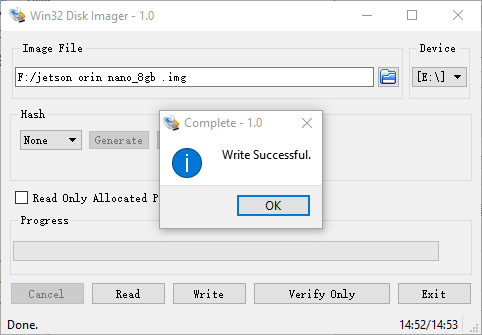

Wait for the system to be written successfully:

image-20250123105647187

image-20250123111430147

After the system is written, you can close the program and install the SSD to the Jetson Orin motherboard!

3. Description​

The Jetson motherboard can start the system normally and it depends on the system Jetpack version. Generally, only the same version can start the system!
