Face recognition

1. Introduction

MediaPipe is an open-source data stream processing machine learning application development framework developed by Google. It is a graph-based data processing pipeline used to build data sources in various forms, such as video, audio, sensor data, and any time series data. MediaPipe is cross-platform and can run on embedded platforms (such as Raspberry Pi), mobile devices (iOS and Android), workstations and servers, and supports mobile GPU acceleration. MediaPipe provides cross-platform, customizable ML solutions for real-time and streaming media. The core framework of MediaPipe is implemented in C++ and provides support for languages such as Java and Objective C. The main concepts of MediaPipe include packets, streams, calculators, graphs, and subgraphs.

Features of MediaPipe:

End-to-end acceleration: built-in fast ML inference and processing can be accelerated even on ordinary hardware.
Build once, deploy anywhere: unified solution for Android, iOS, desktop/cloud, web, and IoT.
Ready-to-use solution: cutting-edge ML solution that showcases the full capabilities of the framework.
Free and open source: framework and solution under Apache 2.0, fully extensible and customizable.

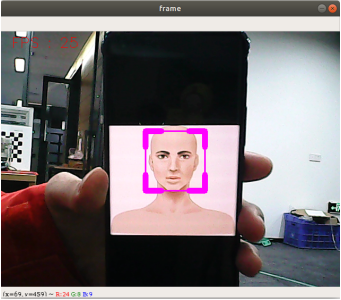

2.Face recognition

2.1 Start

Input following command to start the program

roscore
rosrun jetcobot_mediapipe 05_FaceEyeDetection.py

2.2 About code

Code path：~/jetcobot_ws/src/jetcobot_mediapipe/scripts/05_FaceDetection.py

#!/usr/bin/env python3
# encoding: utf-8
import time
import rospy
import rospkg
import cv2 as cv
from cv_bridge import CvBridge
from sensor_msgs.msg import CompressedImage, Image


class FaceEyeDetection:
def __init__(self):
self.bridge = CvBridge()

rospy.init_node("FaceEyeDetection", anonymous=False)
self.eyeDetect = cv.CascadeClassifier(
rospkg.RosPack().get_path("jetcobot_mediapipe") + "/scripts/file/haarcascade_eye.xml")
self.faceDetect = cv.CascadeClassifier(
rospkg.RosPack().get_path("jetcobot_mediapipe") + "/scripts/file/haarcascade_frontalface_default.xml")
self.pub_rgb = rospy.Publisher("/FaceEyeDetection/image", Image, queue_size=1)
rospy.on_shutdown(self.cancel)
def cancel(self):
self.pub_rgb.unregister()

def face(self, frame):
gray = cv.cvtColor(frame, cv.COLOR_BGR2GRAY)
faces = self.faceDetect.detectMultiScale(gray, 1.3)
for face in faces: frame = self.faceDraw(frame, face)
return frame

def eye(self, frame):
gray = cv.cvtColor(frame, cv.COLOR_BGR2GRAY)
eyes = self.eyeDetect.detectMultiScale(gray, 1.3)
for eye in eyes:
cv.circle(frame, (int(eye[0] + eye[2] / 2), int(eye[1] + eye[3] / 2)), (int(eye[3] / 2)), (0, 0, 255), 2)
return frame

def faceDraw(self, frame, bbox, l=30, t=10):
x, y, w, h = bbox
x1, y1 = x + w, y + h
cv.rectangle(frame, (x, y), (x + w, y + h), (255, 0, 255), 2)
# Top left x,y
cv.line(frame, (x, y), (x + l, y), (255, 0, 255), t)
cv.line(frame, (x, y), (x, y + l), (255, 0, 255), t)
# Top right x1,y
cv.line(frame, (x1, y), (x1 - l, y), (255, 0, 255), t)
cv.line(frame, (x1, y), (x1, y + l), (255, 0, 255), t)
# Bottom left x1,y1
cv.line(frame, (x, y1), (x + l, y1), (255, 0, 255), t)
cv.line(frame, (x, y1), (x, y1 - l), (255, 0, 255), t)
# Bottom right x1,y1
cv.line(frame, (x1, y1), (x1 - l, y1), (255, 0, 255), t)
cv.line(frame, (x1, y1), (x1, y1 - l), (255, 0, 255), t)
return frame

def pub_img(self, frame):
self.pub_rgb.publish(self.bridge.cv2_to_imgmsg(frame, "bgr8"))


if __name__ == '__main__':
capture = cv.VideoCapture(0)
capture.set(6, cv.VideoWriter_fourcc(*'XVID'))
capture.set(cv.CAP_PROP_FRAME_WIDTH, 640)
capture.set(cv.CAP_PROP_FRAME_HEIGHT, 480)
print("capture get FPS : ", capture.get(cv.CAP_PROP_FPS))
pTime, cTime, content_index = 0, 0, 0
dat_file = "./file/shape_predictor_68_face_landmarks.dat"
face_eye_detection = FaceEyeDetection()
content = ["face", "eye", "face_eye"]
while capture.isOpened():
ret, frame = capture.read()
# frame = cv.flip(frame, 1)
action = cv.waitKey(1) & 0xFF
if action == ord("f") or action == ord("F"):
content_index += 1
if content_index >= len(content): content_index = 0
if content[content_index] == "face": frame = face_eye_detection.face(frame)
elif content[content_index] == "eye": frame = face_eye_detection.eye(frame)
else: frame = face_eye_detection.eye(face_eye_detection.face(frame))
if action == ord('q') or action == ord("Q"): break
cTime = time.time()
fps = 1 / (cTime - pTime)
pTime = cTime
text = "FPS : " + str(int(fps))
cv.putText(frame, text, (20, 30), cv.FONT_HERSHEY_SIMPLEX, 0.9, (0, 0, 255), 1)
cv.imshow('frame', frame)
face_eye_detection.pub_img(frame)
capture.release()
cv.destroyAllWindows()
