GPIO reading

1. GPIO pin diagram

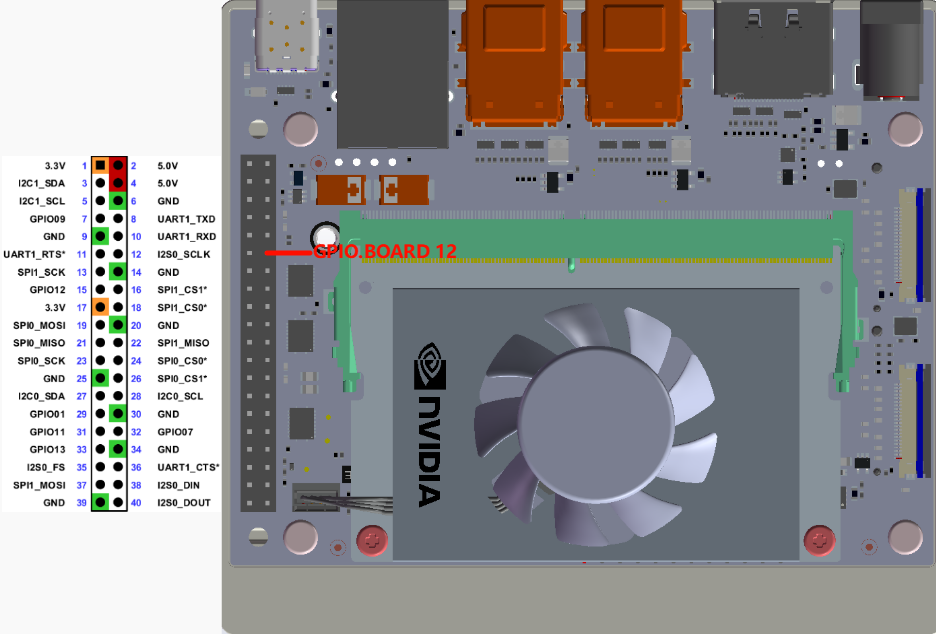

GPIO.BOARD 12 pin corresponds to GPIO.BCM 18 pin:

2. Run the program

cd ~/jetson-gpio/samples

export JETSON_MODEL_NAME=JETSON_ORIN_NANO

python3 simple_input.py

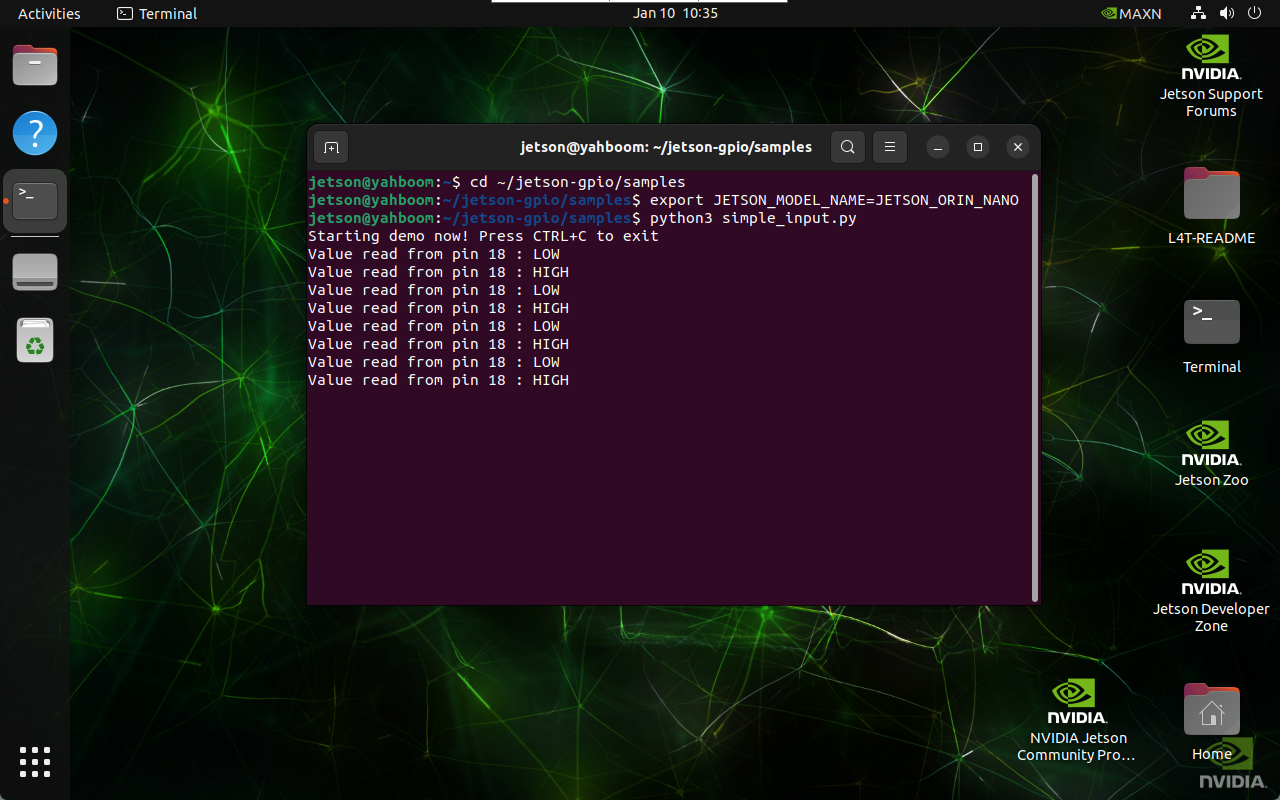

3. Program effect

Use Dupont wire to connect GPIO.BOARD 12 pin to GND and 3.3V pin on the motherboard, and test the reading of high and low levels:

warning

Do not connect incorrectly or cause pin short circuit, as mistakes may damage the motherboard hardware!
