10. TF Publishing and Monitoring

10.1 TF Function Package​

10.1.1 Overview​

TF is a functional ROS package that allows users to track multiple coordinate systems over time. It uses a tree-shaped data structure to buffer and maintain coordinate transformation relationships between multiple coordinate systems based on time.

It helps developers perform coordinate transformations such as converting points and vectors between coordinate systems at any time.

10.1.2 Usage Steps​

  1. Monitoring TF Transformations
    Receive and cache all coordinate system transformation data published in the system, and query the required coordinate transformation relationships.

  2. Broadcasting TF Transformations
    Broadcast the coordinate transformation relationship between coordinate systems. Multiple TF broadcasters may exist in a system and each can directly insert transformations into the TF tree.

10.2 Programming Implementation of Broadcasting and Monitoring​

10.2.1 Creating and Compiling the Package​

cd ~/catkin_ws/src
catkin_create_pkg learning_tf rospy roscpp turtlesim tf
cd ..
catkin_make

10.2.2 TF Broadcaster Implementation Steps​

  1. Define the TF broadcaster (TransformBroadcaster)
  2. Initialize TF data and create coordinate transformations
  3. Publish coordinate transformation (sendTransform)

10.2.3 TF Listener Implementation Steps​

  1. Define the TF listener (TransformListener)
  2. Find coordinate transformations (waitForTransform, lookupTransform)

10.2.4 C++ Implementation of TF Broadcaster​

Step 1: Create File​

Create the following file:

learning_tf/src/turtle_tf_broadcaster.cpp

Step 2: Add the Following Code​

#include <ros/ros.h>
#include <tf/transform_broadcaster.h>
#include <turtlesim/Pose.h>

std::string turtle_name;

void poseCallback(const turtlesim::PoseConstPtr& msg)
{
    static tf::TransformBroadcaster br;

    tf::Transform transform;
    transform.setOrigin(tf::Vector3(msg->x, msg->y, 0.0));

    tf::Quaternion q;
    q.setRPY(0, 0, msg->theta);
    transform.setRotation(q);

    br.sendTransform(tf::StampedTransform(transform, ros::Time::now(), "world", turtle_name));
}

int main(int argc, char** argv)
{
    ros::init(argc, argv, "turtle_world_tf_broadcaster");

    if (argc != 2)
    {
        ROS_ERROR("Missing parameter for turtle name.");
        return -1;
    }

    turtle_name = argv[1];

    ros::NodeHandle node;
    ros::Subscriber sub = node.subscribe(turtle_name + "/pose", 10, &poseCallback);

    ros::spin();
    return 0;
}

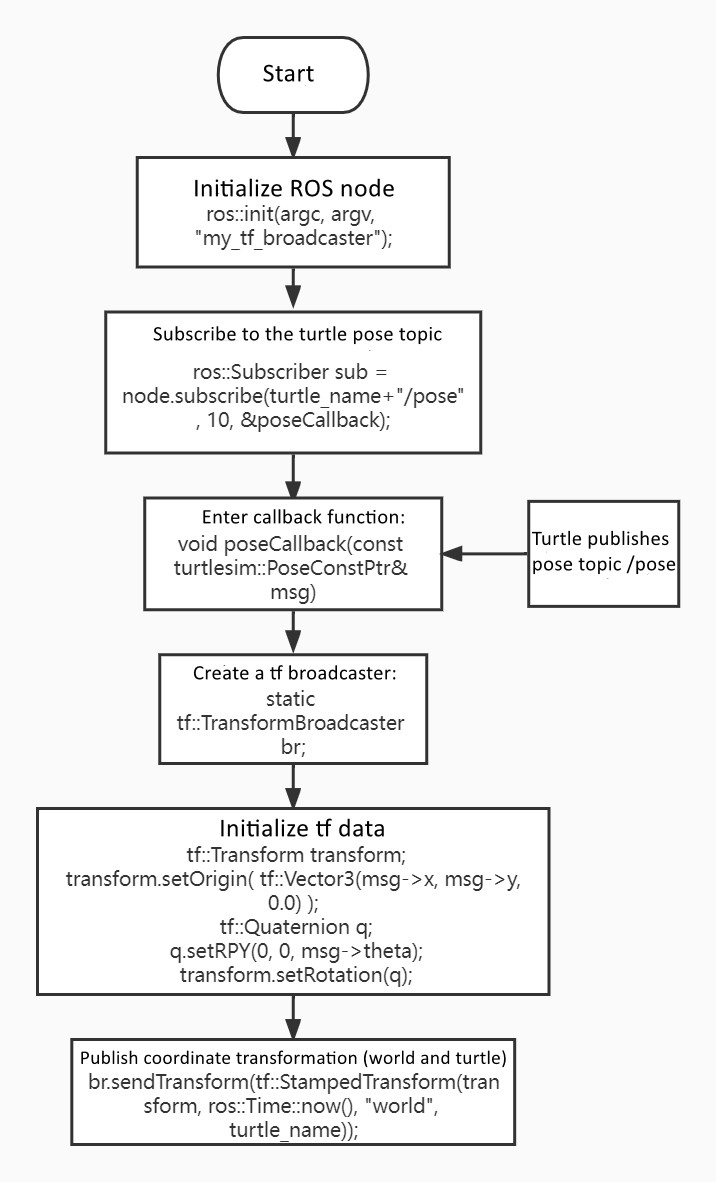

TF Broadcaster Process Flow​

TF Broadcaster Flow

TF Broadcaster Code Explanation​

The broadcaster subscribes to the turtle /pose topic. Whenever new pose data is received, a TF broadcaster is created and a coordinate transformation is constructed.

The transformation includes:

  • Translation from x, y
  • Rotation from theta angle

The function sendTransform() publishes the transformation between the world frame and the turtle frame.

10.2.4 C++ Implementation of TF Listener​

Step 1: Create File​

learning_tf/src/turtle_tf_listener.cpp

Step 2: Add the Following Code​

#include <ros/ros.h>
#include <tf/transform_listener.h>
#include <geometry_msgs/Twist.h>
#include <turtlesim/Spawn.h>

int main(int argc, char** argv)
{
    ros::init(argc, argv, "turtle1_turtle2_listener");
    ros::NodeHandle node;

    ros::service::waitForService("/spawn");
    ros::ServiceClient add_turtle = node.serviceClient<turtlesim::Spawn>("/spawn");
    turtlesim::Spawn srv;
    add_turtle.call(srv);

    ros::Publisher vel = node.advertise<geometry_msgs::Twist>("/turtle2/cmd_vel", 10);

    tf::TransformListener listener;
    ros::Rate rate(10.0);

    while (node.ok())
    {
        tf::StampedTransform transform;
        try
        {
            listener.waitForTransform("/turtle2", "/turtle1", ros::Time(0), ros::Duration(3.0));
            listener.lookupTransform("/turtle2", "/turtle1", ros::Time(0), transform);
        }
        catch (tf::TransformException &ex)
        {
            ROS_ERROR("%s", ex.what());
            ros::Duration(1.0).sleep();
            continue;
        }

        geometry_msgs::Twist turtle2_vel_msg;

        turtle2_vel_msg.angular.z = 6.0 * atan2(
            transform.getOrigin().y(),
            transform.getOrigin().x());

        turtle2_vel_msg.linear.x = 0.8 * sqrt(
            pow(transform.getOrigin().x(), 2) +
            pow(transform.getOrigin().y(), 2));

        vel.publish(turtle2_vel_msg);
        rate.sleep();
    }

    return 0;
}

TF Listener Process Flow​

TF Listener Flow

TF Listener Code Explanation​

  1. Turtle2 is created using the /spawn service.
  2. A velocity publisher is created to send movement commands to Turtle2.
  3. A TF listener continuously retrieves coordinate transformations between Turtle1 and Turtle2.
  4. Mathematical operations are applied to compute velocity and direction.
  5. Turtle2 follows Turtle1 dynamically.

10.2.5 Modifying CMakeLists.txt and Compiling​

Add the following lines to your package CMakeLists.txt:

add_executable(turtle_tf_broadcaster src/turtle_tf_broadcaster.cpp)
target_link_libraries(turtle_tf_broadcaster ${catkin_LIBRARIES})

add_executable(turtle_tf_listener src/turtle_tf_listener.cpp)
target_link_libraries(turtle_tf_listener ${catkin_LIBRARIES})

Then compile:

cd ~/catkin_ws
catkin_make

✅ You now have fully working TF broadcaster and listener nodes for monitoring coordinate transformations in ROS.
